Introduction to the Schrader Valve in AC Systems
The Schrader valve AC component is a critical element in automotive air conditioning systems. It facilitates the charging and discharging of refrigerant, ensuring the system operates efficiently. Understanding its function and maintenance is essential for vehicle owners and technicians alike.
What is a Schrader Valve?

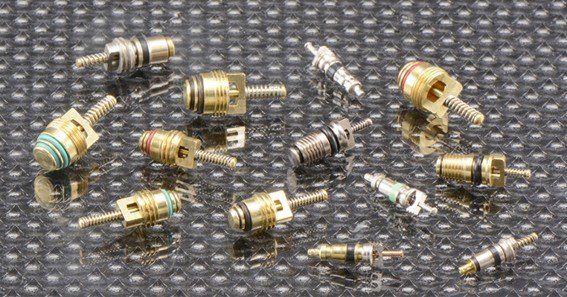

A Schrader valve, often referred to as the “American valve,” is a type of pneumatic valve used extensively in various applications, including automotive air conditioning systems. It consists of a valve stem into which a valve core is threaded. The core is a poppet valve assisted by a spring, allowing for controlled release or containment of gas or liquid under pressure.
Function in Automotive AC Systems
In automotive AC systems, Schrader valves are located on both the high-pressure and low-pressure service ports. They serve as access points for recharging refrigerant and for diagnostic purposes. The valve’s design ensures that refrigerant does not escape during these processes, maintaining system integrity.
Common Issues and Maintenance
Over time, Schrader valves can develop leaks due to wear or debris accumulation. Symptoms of a faulty valve include reduced cooling efficiency and hissing sounds near the service ports. Regular inspection and maintenance are crucial. Replacing a leaking valve involves evacuating the system, removing the old valve core with a specialized tool, and installing a new core.
Step-by-Step Replacement Guide
- Safety First: Ensure the AC system is depressurized before starting.
- Locate the Valve: Identify the faulty Schrader valve on the service port.
- Remove the Old Core: Use a valve core removal tool to unscrew and extract the old core.
- Install the New Core: Insert and tighten the new valve core securely.
- Test the System: Recharge the system with refrigerant and check for leaks.
FAQs
Q1: What is the primary function of a Schrader valve in an AC system?
A1: It allows for the controlled charging and discharging of refrigerant, facilitating maintenance and diagnostics.
Q2: How can I tell if my Schrader valve is leaking?
A2: Common signs include hissing sounds near the service ports and decreased cooling performance.
Q3: Can I replace a Schrader valve myself?
A3: Yes, with the proper tools and safety precautions, replacing a Schrader valve is a manageable DIY task.
Q4: How often should Schrader valves be inspected?
A4: It’s advisable to inspect them during regular AC system maintenance or if performance issues arise.
Q5: Are Schrader valves universal across all vehicles?
A5: While they are common, valve sizes and specifications can vary; always consult your vehicle’s manual or a professional.
Understanding the Schrader valve AC component is vital for maintaining an efficient automotive air conditioning system. Regular inspection and timely replacement can prevent performance issues and ensure a comfortable driving experience.
